8G LED High bay lights Black 140W 1-10V dim 5000K 100-277Vac 125lm/W
Main Features:
- Sealed die-casting profile for indoor and outdoor applictions.
- Universal voltage of 120-277V&347-480V.
- Best choice for replacing 250W MH and 400W MH.
- Above 80 color rendition index compared to HPS.
- Increase energy savings with bi-level motion sensor.
- Optional emergency battery to serve in accidental situation.
- Operating temperature is -40℃ to 50℃(-40℉ to 122℉).
- Hook mount, pendant mount and surface mount available.
Applications:
Suitable for commercial, retail and institutional applications including gymnasiums,factories and warehouses.
Basic Specification:
| Model No. | LS8EHB140W27V50K |
| Input Power | 140W |
| Lumen | 17500 lm |
| Lumen Efficiency | 125 LM/W |
| Color Temperature | 4000K, 5000K, 5700K |
| CRI | >80Ra |
| Viewing Angle | 120° |
| Input Voltage | 120-277VAC 50/60Hz |
| PF | ≥0.9 |
| THD | ≤20% |
| Driver Brand | China Brand Driver (1-10V dimming ) |
| Optional Accessory | Motion Sensor / Emergency Box |
| LED Type | SMD 2835 |
| LED QTY | 320pcs |
| Housing | Aluminum |
| Housing Color | Black, Dark bronze, White |
| Waterproof Rating | IP65 |
| Operating Temperature | -40℃ TO 45℃ |
| Operating Humidity | 20％-90％ RH |
| Storage Temperature | -40℃ TO 80℃ |
| Storage Humidity | 10％-95％ RH |
| Warranty Time | 5 Years |

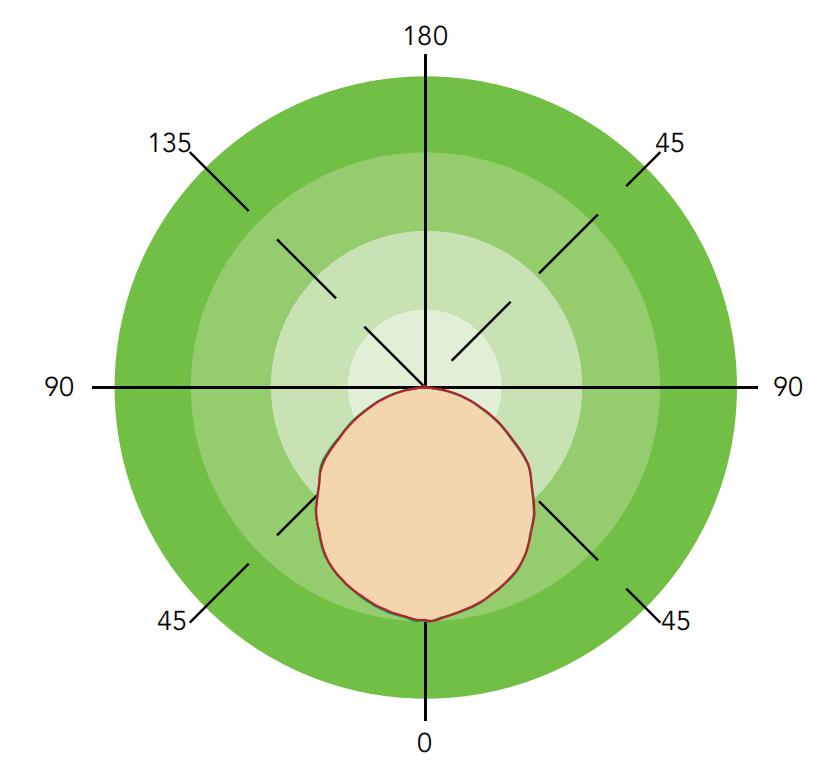

Photometrics:
Product construstion:

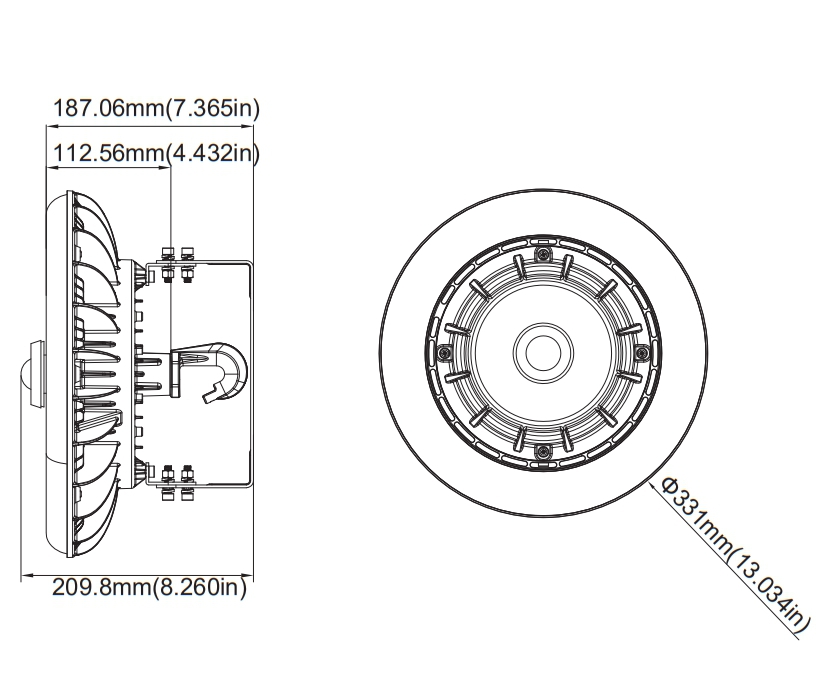

Product Dimension(mm):
| Item | With open hook | With U Bracket |
| 140W | Φ331×180mm | Φ331×187mm |
Package:
| Model | Carton Dimension | Qty/Carton | N.W | G.W |
| 140W | 14.5”x13.5”x5.5” (365x355x135 mm) | 1PCS | 6lbs (2.723kg) | 8lbs (3.7kg) |
FAQ:
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A:From USA warehouse sample and mass product need 1-2 days,
From China factory sample needs 5-7 working days, mass order need around 15-20 working days .
Q3. How do you ship the goods ?
A: By express(DHL, UPS or FedEx), by air, by sea .
Q4. How to proceed an order for led light?
A: Firstly, let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, We arrange the production.
Q5. Is it OK to print my logo on products ?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Warehouse introduction:
Ledsion Ligting has its own warehouse in Dallas, TX 75247, USA. Warehouse area up to 50,000 square feet. We have professional person responsible for warehouse operation. Professional after-sales service, and professional logistic team, can send out all the goods in the same day customer ordered.
